SI and maybe a DI one. Thanks
SI and maybe a DI one. Thanks
Here's a SI pic of the point of an island with the river ledge across the bottom of the pic and a secondary channel ledge running diagonally from the lower left to upper right.
"I know something about a lot of things, and I know a lot about some things, but I don't know everything about anything." - DG
Thanks for the pic.Is that at Wheeler?
<table width="90%" cellspacing=0 cellpadding=0 align=center><tr><td>Quote, originally posted by champion256 »</td></tr><tr><td class="quote">Thanks for the pic.Is that at Wheeler?</td></tr></table>
Yes.
"I know something about a lot of things, and I know a lot about some things, but I don't know everything about anything." - DG
Notice the crisp white lines along the creek channel this is a ledge when the sonar hit it directly. THe Crisp White line is displayed because the sound waves hit a vertical surface.
When the sonar shoots over a ledge it will show a shadow (Or Absence of Sonar) this which help you learn height of the ledge - longer the shadow the more drop.
THis image has both in it.
--
http://www.dougvahrenberg.com/
BASS Central Open- Competitive Bass Angler and Humminbird Guru
Visit my website to learn about my sponsor's products, fishing tips and techniques.
Learn More About Humminbird Side Imaging Visit: http://groups.yahoo.com/group/sideimaginggroup/
Wow! Awesome explanation Doug!!!
Making good people helpless has never made bad people harmless.
Another one with both views, all on the same ledge. One over the top of the ledge on the right with the shadow , and one into the ledge on the left where it brightens the ledge.
91reddog,
I can see the trolling rod I lost behind that right ledge... Ft. Thompson right?
See you on the 9th, will have the Pipestone boys there also.
Gregg Ebert
Yep, Just down from the tailrace, if I remember right. That was one of my first screencaptures. The first of many, I enjoy my 997 almost as much as I enjoy fishing.
I guess that answers my question to you on the other post. I was going to suggest you give them a call.
Got a number of guy's coming, hope they see the light & go HB.
Gregg Ebert
I think I have 7 or 8 attending. Last time I talked to John,(2 weeks ago) he had about 35 pre-registered. I told him I would bring my own units and power supply if he needed.
John told me they were going to have 25 birds set up. They were limiting seminar to 30 people? Hands on for everyone, do you know any more?
Greg, Go to the other post. I dont want to walk all over this one.

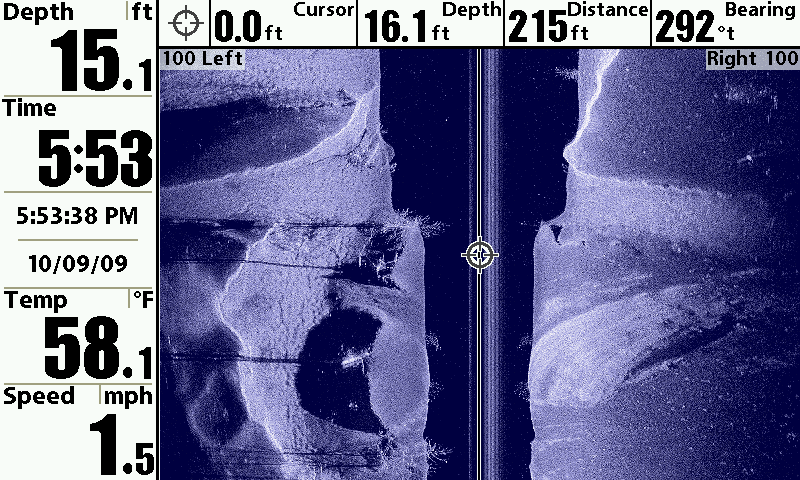

I found this channel ledge screen shot in my files:
Wayne Purdum
Charlottesville, Va.
Helix 12 MEGA SI+ G4N, Helix 15 MEGA SI+ GPS G4N
SOLIX 12 SI/G3, Helix 8 MEGA SI+ G4N, Ultrex 80/Advanced, MEGA360,
MEGA LIVE, LIVE TL, MEGA LIVE 2, Xplore 10
