    wire that is unplug

    I have a 1989 johnson 200gt I will get the serial number for it tomorrow when there is light.

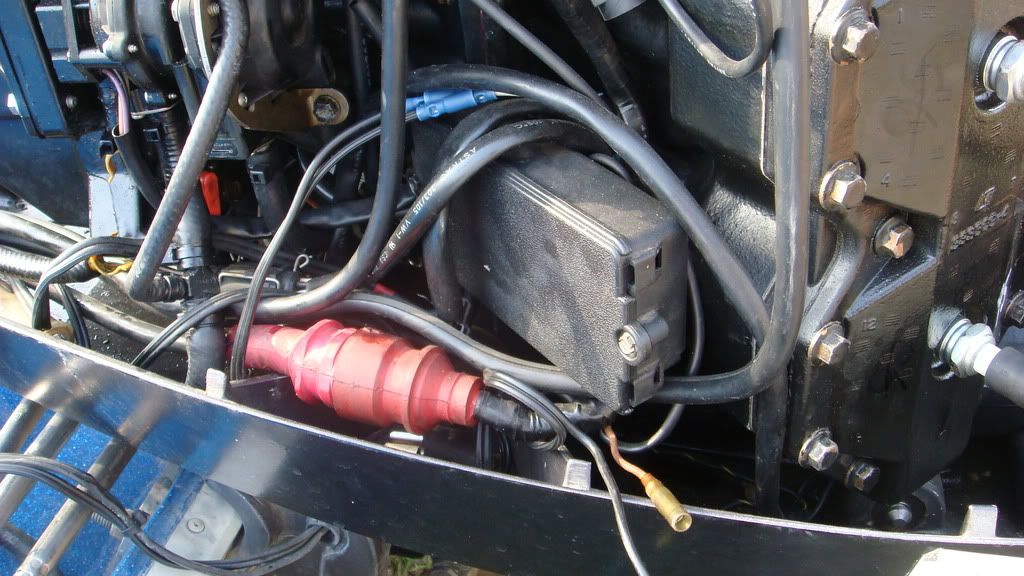

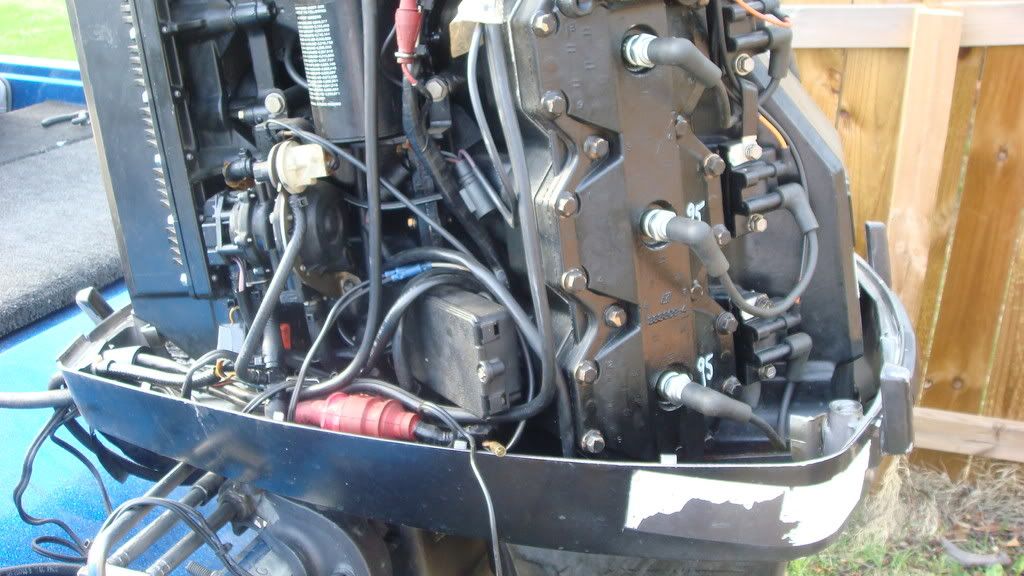

    I had the motor worked on last year and last week after taking out to the lake I was just checking the motor over and ran into a problem. On the left side of the motor if standing behind the motor and looking towards the front of the boat there is a wire that I see is not plugged in that goes to a black box. I included pics. Does anybody know what that wire is for and do I plug it back in? The boat ran fine so I do not know what to do. The only thing I have done to the motor lately is removed the VRO and premixing the oil.







    TIA


    1990 Procraft Family Fisher 190
    1989 Johnson GT200 #G2583826

  2. Moderator SEAHORSE's Avatar
    Join Date
    Jun 2004
    Posts
    9,638
    #2

    Re: wire that is unplug (eg92b16a2)

    That is the wire from the oil tank low oil sender thingie watchamacallit.

    Those tank pickups contain electronics to give off the beep every 20-30 seconds when the oil is down low. Many times the electronics go belly up by sounding continuous or intermittent or weird sounds and folks just disconnect the wire instead of paying over $100 in parts and labor just to have something to tell them what they should be checking visually anyway. (now that is a long sentence!)
    -----


    A Technical troubleshooter possessing more tools than talent !

  3. Member
    Join Date
    Aug 2007
    Location
    Des Moines
    Posts
    13
    #3

    Re: wire that is unplug (SEAHORSE)

    I thought it was the wire for the I-command transducer thingy??????

  4. Moderator SEAHORSE's Avatar
    Join Date
    Jun 2004
    Posts
    9,638
    #4

    Re: wire that is unplug (Neckshot045)

    <TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by Neckshot045 &raquo;</TD></TR><TR><TD CLASS="quote">I thought it was the wire for the I-command transducer thingy??????
    </TD></TR></TABLE>


    Glad to see you posting again, rookie!
    -----


    A Technical troubleshooter possessing more tools than talent !

  5. Member
    Join Date
    May 2007
    Location
    Salina
    Posts
    40
    #5

    Re: wire that is unplug (SEAHORSE)

    thanks Seahorse


    1990 Procraft Family Fisher 190
    1989 Johnson GT200 #G2583826
