Powerpack question (J25REIE)

[wadefisher]

I have a 1991 25 hp johnson with a suspected powerpack issue (yes... it has a UFI).

I would like to know if I can use a 2-cyl 40 HP powerpack (same year, 1991)?

Thanks

Randy

[ChampioNman]

Yes you can.

[wadefisher]

Thanks ChampioNman.. I pulled the flywheel last night. Part number of suspected powerpack is 584331. I want to replace with a 584329.

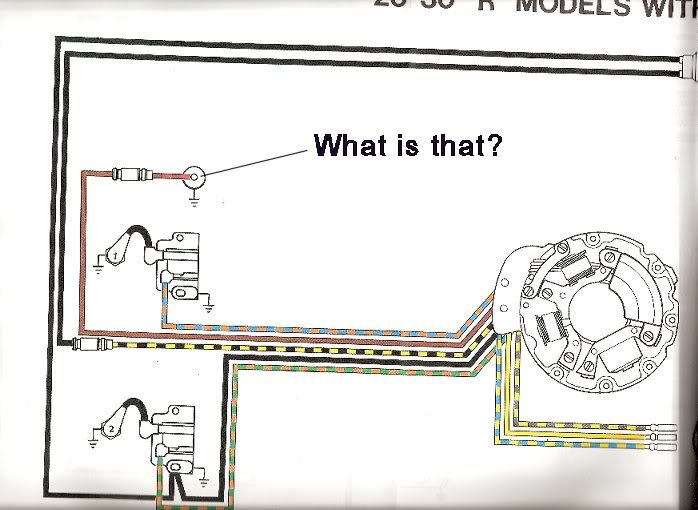

...what is this....




Modified by wadefisher at 6:40 PM 4/30/2009

[Bassmeister]

That is a ground termination, presumably on the block.

[SEAHORSE]

<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by Bassmeister &raquo;</TD></TR><TR><TD CLASS="quote">That is a ground termination, presumably on the block.</TD></TR></TABLE>

Uh oh, put those hands straight out in front of you, BM, for a slap with a wooden spoon.

The item is the temp switch which triggers the pack to slow the motor down in case of an overheat.

[ChampioNman]

<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by Bassmeister &raquo;</TD></TR><TR><TD CLASS="quote">That is a ground termination, presumably on the block.</TD></TR></TABLE>


<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD>Quote, originally posted by SEAHORSE &raquo;</TD></TR><TR><TD CLASS="quote">

Uh oh, put those hands straight out in front of you, BM, for a slap with a wooden spoon.

The item is the temp switch which triggers the pack to slow the motor down in case of an overheat.</TD></TR></TABLE>

Now he's done gone color blind on me too!!

Wade the new part superceeds to 584489 either one should work.

[wadefisher]

That's excellent info

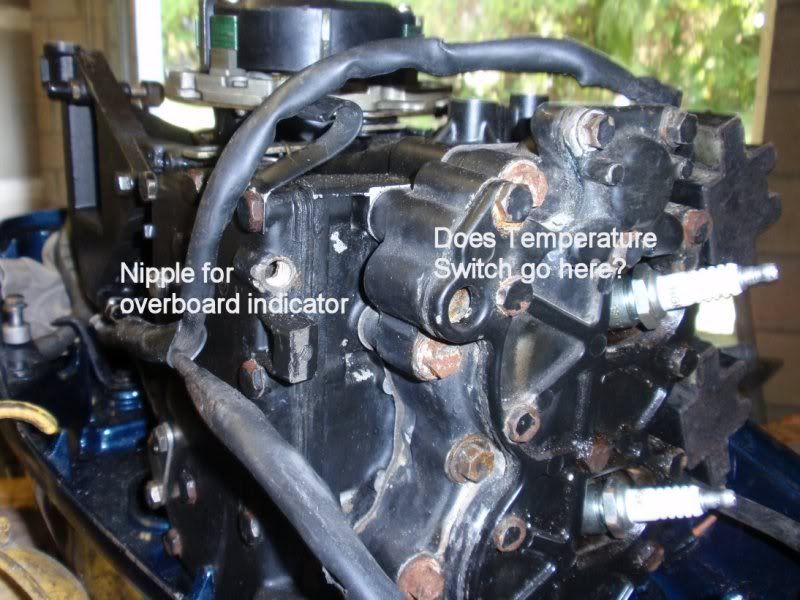

I had this powerhead rebuilt and I don't see the temperature switch. I don't recall having a temp switch. Service manual is too vague where it goes and parts diagram on http://epc.brp.com doesn't help either.

Where is the temperature switch?



PS: I thought the symbol was a ground too, but the pin in the center had me guessing. You guys rock.

Randy (Wadefisher)

[Bassmeister]

AHH CHIT!!! One aw chit takes away a bunch of attaboys!!!! Hands are out SH!!! Smack away!!

[ChampioNman]

Better get tested for color blindness too.

[ELGIN]

That looks like the pocket most of us would use for the temp sensor but BM would use that hole for a ground.

[wadefisher]

Thanks for the info.

Last Q:

This engine is a fresh rebuild. No boring, just rings and gaskets. However, the motor does not "easily" rotate past TDC by hand on each stroke (even with the plugs out). I can not use the pull rope to pull the engine past this point. If I put a wrench on the flywheel nut I can crank it past this point but it seems tight. also, if I back the crank by hand half a rotation and pull the cord momentum carries the crank/pistons past this spot. but if after pulling the crank there is a piston nearing TDC, I can't pull the pull cord again.

Is that normal for a fresh rebuild or should I take it back to my rebuilder?

[ChampioNman]

Take it back the motor should spin freely with plugs out.
