    Fishing the Turnover...

    Thought I would share my outing this morning with ya. We are experiencing some turnover in the creeks as of late. Some creeks seem to be worst than others. At the same time we are going through our annual lake drawdown where the lake drops 17ft each year which creates a combustion chamber fishing wise :)~.

    At low pool our creeks are high and dry. This drawdown forces the fish out of the creeks and towards the main lake. While at the same time the shad are migrating from the main lake into the creeks. So where they meet is where the combustion chamber takes place

    The best way to find these areas is to go into the creeks and start looking for deep holes in the creeks. Once you find the deep holes look for the bait using your SI. Once you find bait you need to pay attention to subtle clues that tell you fish are present. Alot of times these fish are stuck to the bottom so what your looking for looks something like alot of tin cans on the lake bottom on your SI. You won't see many shadows if any. A really good clue is you see just a few fish suspended about a foot off the bottom. If you get all of these variables lined up your in for a fire drill. If not keep looking in other creeks till you find all of these variables. They usually use these areas year after year but it's a timing thing with the water levels and the fall shad migration. Honestly alot of times On the first drop you are dropping on a blank screen (no fish). By the time your spoon gets halfway down you will see your unit black out with fish rising up to meet your spoon on the way down. I wish I could get this phenomenon on video one day as it's a hoot to see that on your screen. YOu actually see the bottom come alive as the fish come off the bottom to meet your spoon as it comes down and not 1 second earlier your screen was white as snowflake and no fish in sight.

    So here are some shots from today. Got 35 fish this am by myself. 2 crappie, 2 whites and the rest were chunk spotted bass all on the spoon.

    I am strictly vertical fishing for these fish. Mostly split screening Sonar with SI. There are several techniques that I use to "call" the fish. Sometimes I make short pitches with my spoon and bring it back which brings fish under the cone of the sonar to where I can hypnotize them (for the lack of a better word). I also do big sweeps with my spoon to cover alot of depth vertically. By doing this I can interest a fish at different depth levels. If you concentrate spooning at 30 to 25 feet you tend to overlook the fish that are at 15 to 20 feet. So by dropping your spoon to the bottom then reeling it up to 15ft then dropping it back down your covering more water and expanding your strike zone. So once I get the fish inside the cone I can work them. Then if I catch one and I need to refind the school I spin the trolling motor head to refind the school using SI. I usually make a short pitch of the spoon in the general direction and try for a second fish. Most of these schools you get 1 maybe 3 fish out of a school. So the schools are fly bys which means you have to be on your toes when they fly by.

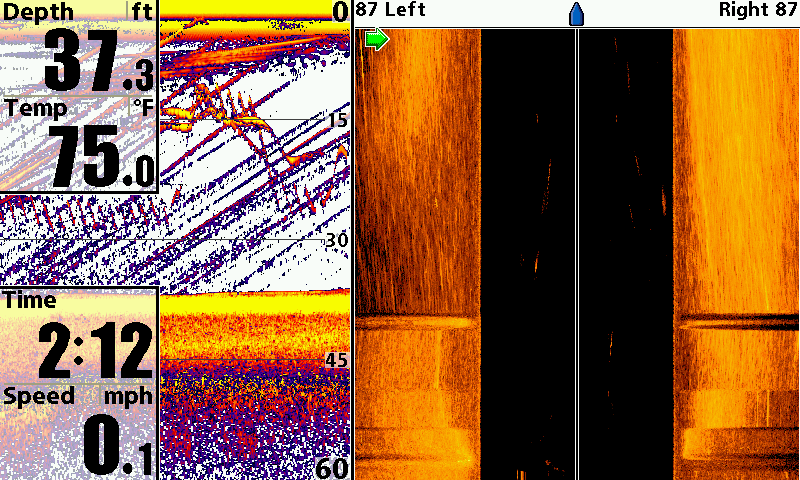

    You will see alot of turnover (45 degree lines) on my images. Anything that isn't 45 degrees is more than likely fish.

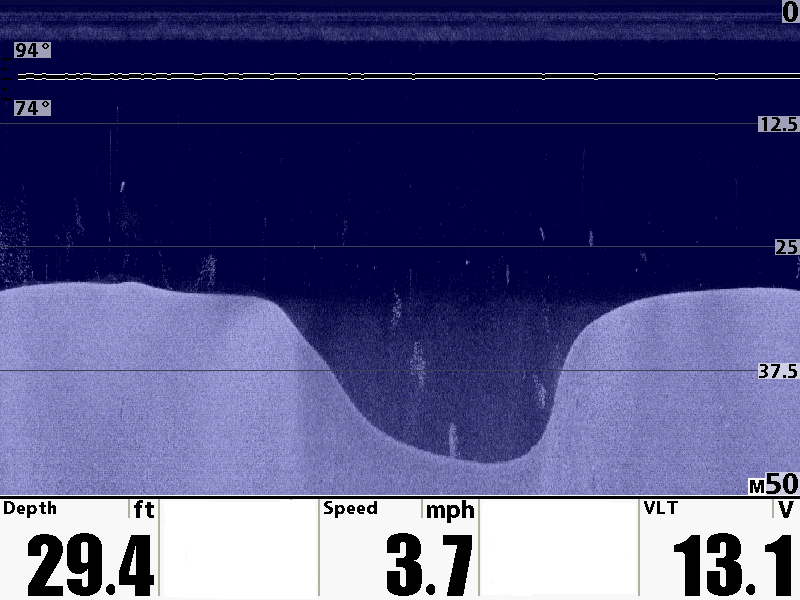

    Here is one image where the creek hasn't quite started turning over yet.

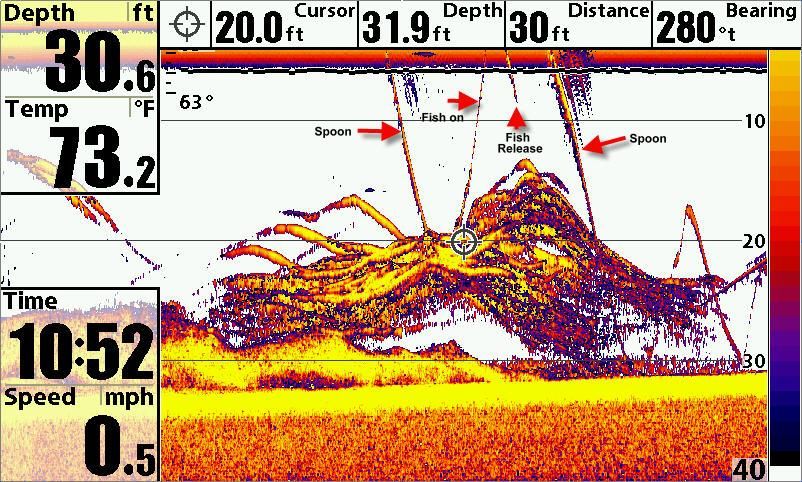

    Here is a hook up



    Here I am bringing the entire school to the bottom following my spoon.

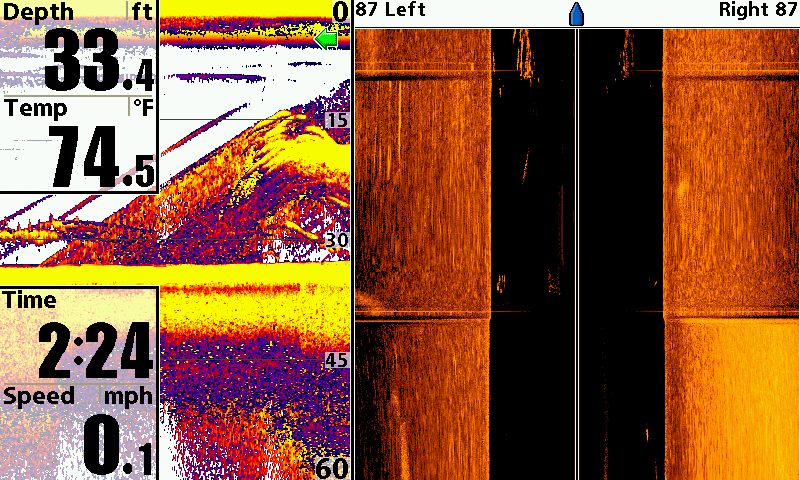

    Requesting fly by (you can also see some turnover here)

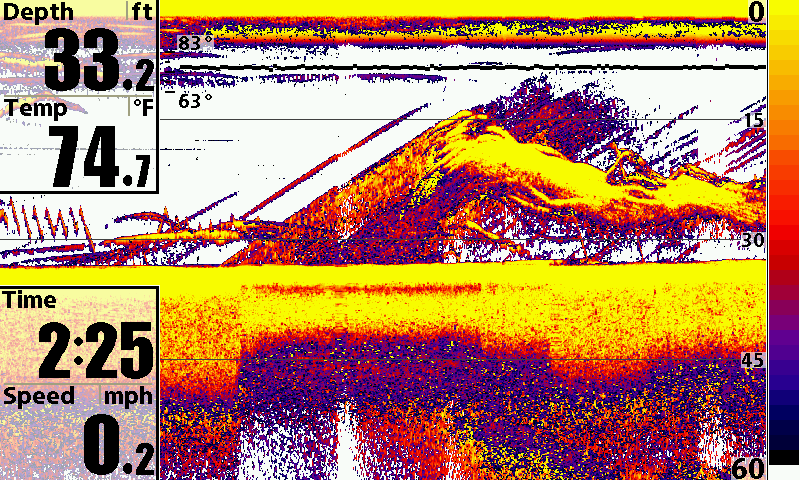

    Here they come.. Do you see me hooking up????

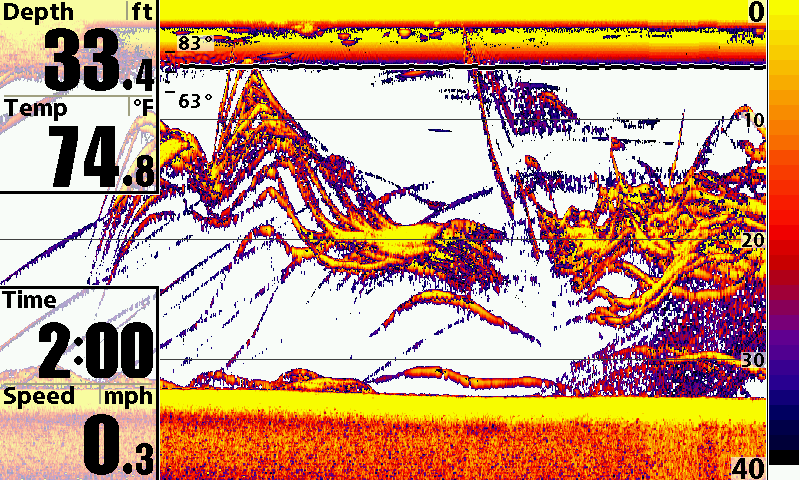

    Spaghetti Junction

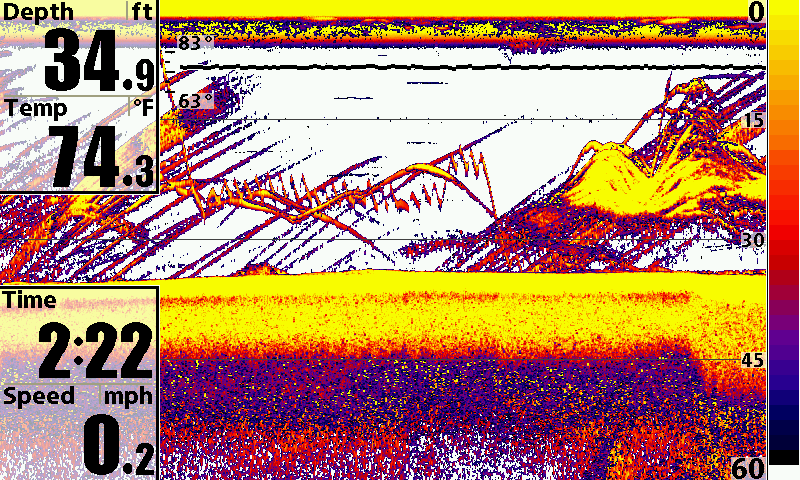

    Some turnover here. 45 degree lines are turnover air bubbles rising to the top...

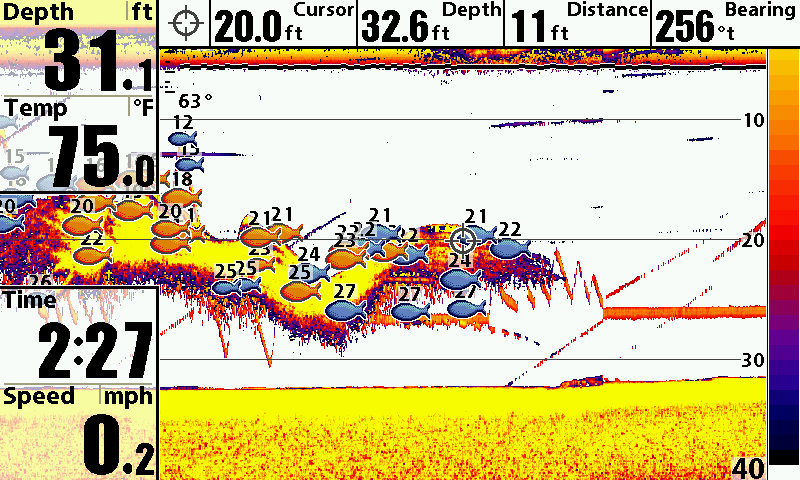

    Lots of fish right under the boat per FISH ID. Yellow fish are directly under the boat. Blue fish are off to the side.





    More Turnover.





    Atlanta, GA Bass Fishing Guide/Swimbait Mfg
    http://www.BullShad.com

  2. Member
    Join Date
    Jun 2007
    Location
    Cedar Bluff AL
    Posts
    1,703
    #2

    Re: Fishing the Turnover... (T Mike)

    mike im going to have to get me one of these si hummingbirds because on my lowrance i cant get any of this stuff that you are getting. when i get one this winter i get to get you to take me out and show me how to use it.
    2025 Bass Cat Eyra
    Mercury 300R

  3. "OVER THE LINE SMOKEY!" headhigh's Avatar
    Join Date
    May 2008
    Location
    Moyock, NC
    Posts
    6,249
    #3

    Re: Fishing the Turnover... (T Mike)

    Mike, those images are freakin' incredible!

    1998 Ranger R93
    1998 Mercury 200 EFI

    "Life, liberty, and the pursuit of happiness."

  4. Member Doug Vahrenberg's Avatar
    Join Date
    Sep 2005
    Location
    Higginsville, MO
    Posts
    12,740
    #4

    Re: Fishing the Turnover... (headhigh)

    Excellent...just excellent reading.

    --


    http://www.dougvahrenberg.com/

    BASS Central Open- Competitive Bass Angler and Humminbird Guru
    Visit my website to learn about my sponsor's products, fishing tips and techniques.

    Learn More About Humminbird Side Imaging Visit: http://groups.yahoo.com/group/sideimaginggroup/

  5. Member
    Join Date
    Apr 2010
    Location
    Mertzon
    Posts
    119
    #5

    Re: Fishing the Turnover... (T Mike)

    These are fabulous lessons and we appreciate them very much. Thank you.

    Ron

  6. Member dward51's Avatar
    Join Date
    Aug 2009
    Location
    McDonough, GA
    Posts
    912
    #6

    Re: Fishing the Turnover... (Flattman)

    Outstanding!!!! Taking notes on this one

    Mike & Doug are the true Guru's of SI

  7. Member Bartman's Avatar
    Join Date
    Apr 2010
    Location
    Russiaville, IN
    Posts
    2,030
    #7
    GREAT tutorial

  8. Member
    Join Date
    Apr 2010
    Location
    Mertzon
    Posts
    119
    #8

    Re: Fishing the Turnover... (T Mike)

    TMike,

    We often discuss SI and DI settings and I am feeling very comfortable with those on my 798 but, I've not seen it discussed as to what are good settings on the Sonar section, i.e. what kind of settings do you use for the Sonar Portion? I realize this is a SI Interpretation board, but I would bet others would like to see some of your's and Doug's recomendations concerning the other settings also. Thank you.

    Ron

  9. Moderator
    Join Date
    Nov 2006
    Location
    Acworth, GA
    Posts
    3,344
    #9

    Re: Fishing the Turnover... (Flattman)

    Hi Ron, This is a IMAGE interpretation forum so it pertains to any questions about images ie sonar, di, si and GPS.

    So to answer your questions.

    Sonar settings

    1. Dual beam (200/83)
    2. >20ft of water Switchfire MAX
    3. <20ft of water Switchfire CLEAR
    4. Adjust sensitivity to your liking (not too high that it shows alot of trash. Not too low that it cuts out subtle detail.)

    90% of the time I'm on Switchfire MAX. I'm lost if my boat is in less than 20ft of water


    Atlanta, GA Bass Fishing Guide/Swimbait Mfg
    http://www.BullShad.com

  10. Member
    Join Date
    Apr 2010
    Location
    Mertzon
    Posts
    119
    #10

    Re: Fishing the Turnover... (T Mike)

    TMike,

    Thanks for your information. I appreciate it very much. That will help me. I would think that on:

    2. you meant to be More than 20 ft. depth then Switch Fire Max. Is that correct. And in 3. It is Less than 20 Ft. then Switch Fire on Clear.

    That helps and that makes sense to me also. Again, Thank you for your help.

    Ron

  11. Moderator
    Join Date
    Nov 2006
    Location
    Acworth, GA
    Posts
    3,344
    #11

    Re: Fishing the Turnover... (Flattman)

    You are correct I fixed it ;).


    Atlanta, GA Bass Fishing Guide/Swimbait Mfg
    http://www.BullShad.com

  12. Member
    Join Date
    Apr 2010
    Location
    Mertzon
    Posts
    119
    #12

    Re: Fishing the Turnover... (T Mike)

    Thanks TMike, that makes it simple and easy to remember.

    Ron

  13. Member Doug Vahrenberg's Avatar
    Join Date
    Sep 2005
    Location
    Higginsville, MO
    Posts
    12,740
    #13

    Re: Fishing the Turnover... (Flattman)

    This thread shows you how to fine tune the sensitivity to get the most useful data for you. It shows the same image in Switchfire Clear Mode and Max Mode and different Sensitivity Settings.

    http://www.bbcboards.net/zerothread?id=557919


    --


    http://www.dougvahrenberg.com/

    BASS Central Open- Competitive Bass Angler and Humminbird Guru
    Visit my website to learn about my sponsor's products, fishing tips and techniques.

    Learn More About Humminbird Side Imaging Visit: http://groups.yahoo.com/group/sideimaginggroup/

  14. Member
    Join Date
    Apr 2010
    Location
    Mertzon
    Posts
    119
    #14

    Re: Fishing the Turnover... (Doug Vahrenberg)

    Thanks Doug, I will use that link to help me. I was playing with the 2D section today and noticed that when I change the background it really makes images look different and sometimes really stand out. I kinda like the black as it gives the colors an almost 3D image. HB has thought of it all with these units. I am so very thankful for this type information and learning board.

    Ron

  15. Member
    Join Date
    Jan 2008
    Location
    Evansville
    Posts
    235
    #15

    Re: Fishing the Turnover... (Flattman)

    Good info Mike!


  16. Member
    Join Date
    Jul 2010
    Location
    Evansville
    Posts
    30
    #16

    Re: Fishing the Turnover... (T Mike)

    Mike, on your 2d images, what is your color setting?

  17. Moderator
    Join Date
    Nov 2006
    Location
    Acworth, GA
    Posts
    3,344
    #17

    Re: Fishing the Turnover... (life)

    <table width="90%" cellspacing=0 cellpadding=0 align=center><tr><td>Quote, originally posted by life &raquo;</td></tr><tr><td class="quote">Mike, on your 2d images, what is your color setting? </td></tr></table>

    Pallette 2 I believe is the name.


    Atlanta, GA Bass Fishing Guide/Swimbait Mfg
    http://www.BullShad.com

  18. Member Doug Vahrenberg's Avatar
    Join Date
    Sep 2005
    Location
    Higginsville, MO
    Posts
    12,740
    #18

    Re: Fishing the Turnover... (T Mike)

    Color Pallete 1...This Video Clip shows all the available color Palletes and background colors. Lots of choices for Humminbird users:

    --


    http://www.dougvahrenberg.com/

    BASS Central Open- Competitive Bass Angler and Humminbird Guru
    Visit my website to learn about my sponsor's products, fishing tips and techniques.

    Learn More About Humminbird Side Imaging Visit: http://groups.yahoo.com/group/sideimaginggroup/

  19. Member
    Join Date
    Jul 2010
    Location
    Evansville
    Posts
    30
    #19

    Re: Fishing the Turnover... (Doug Vahrenberg)

    Thank you.

  20. Member
    Join Date
    Apr 2010
    Location
    Mertzon
    Posts
    119
    #20

    Re: Fishing the Turnover... (Doug Vahrenberg)

    That is an awesome clip Doug, it really shows how different color combinations make different objects stand out in different manners. Very informational.

    Ron
