Skeeter Boats Installation Images

[Doug Vahrenberg]

Place your Humminbird Installation Images for Skeeter Boats in this Thread.

Please Only Installation Images Only. If you wish to discuss please start a new thread referencing or pasting image in new thread.

[Doug Vahrenberg]

2008 Skeeter 20i

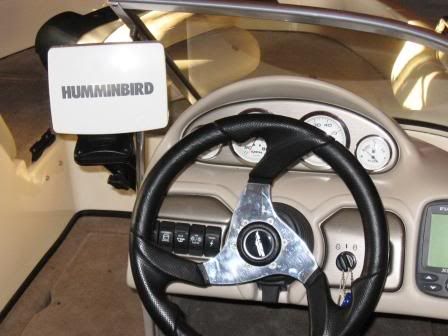

Humminbird 997c Install at the Console:

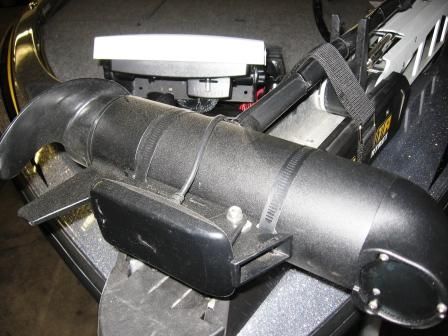

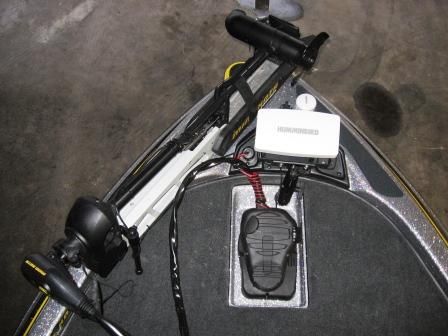

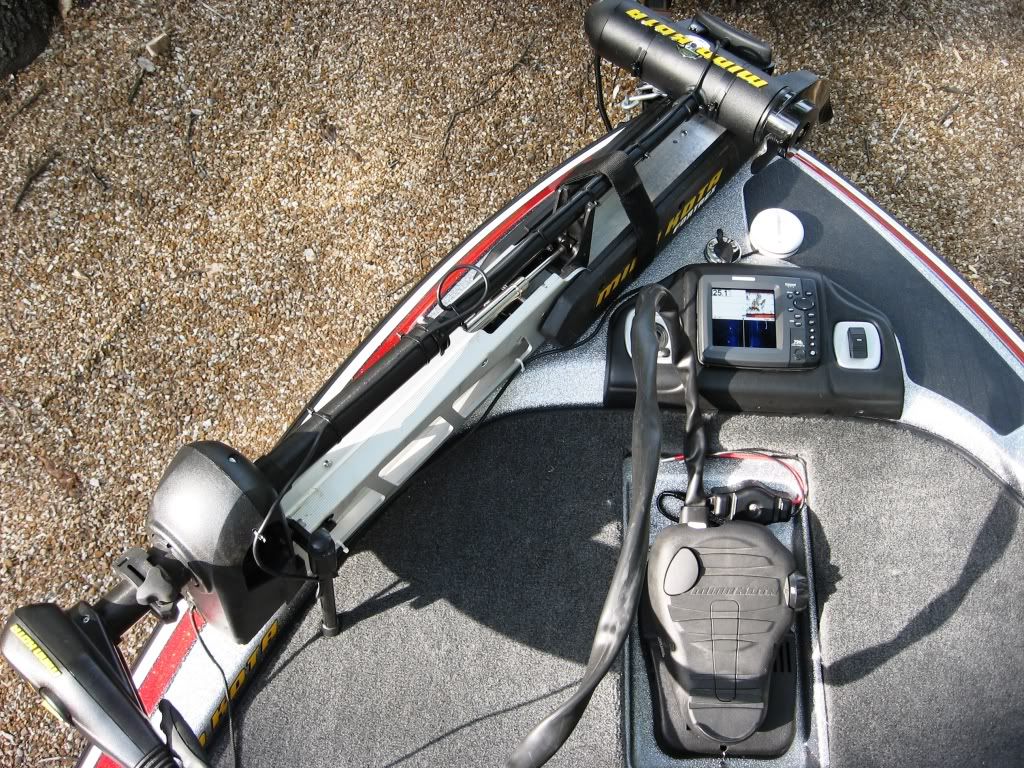

Humminbird 797c2 on the Bow:

[Doug Vahrenberg]

2010 Skeeter 20i Install:

Humminbird 997c at Console:



Humminbird 798c on Bow:

[Doug Vahrenberg]

1969 Super Skeeter
MinnKota Maxxum 55#
Humminbird 997c

[Doug Vahrenberg]

2008 Skeeter SL190 Install
Humminbird 798c
Dual Transducer Install with Y Cable and 2D Shoot-Thru Transducer

[Doug Vahrenberg]

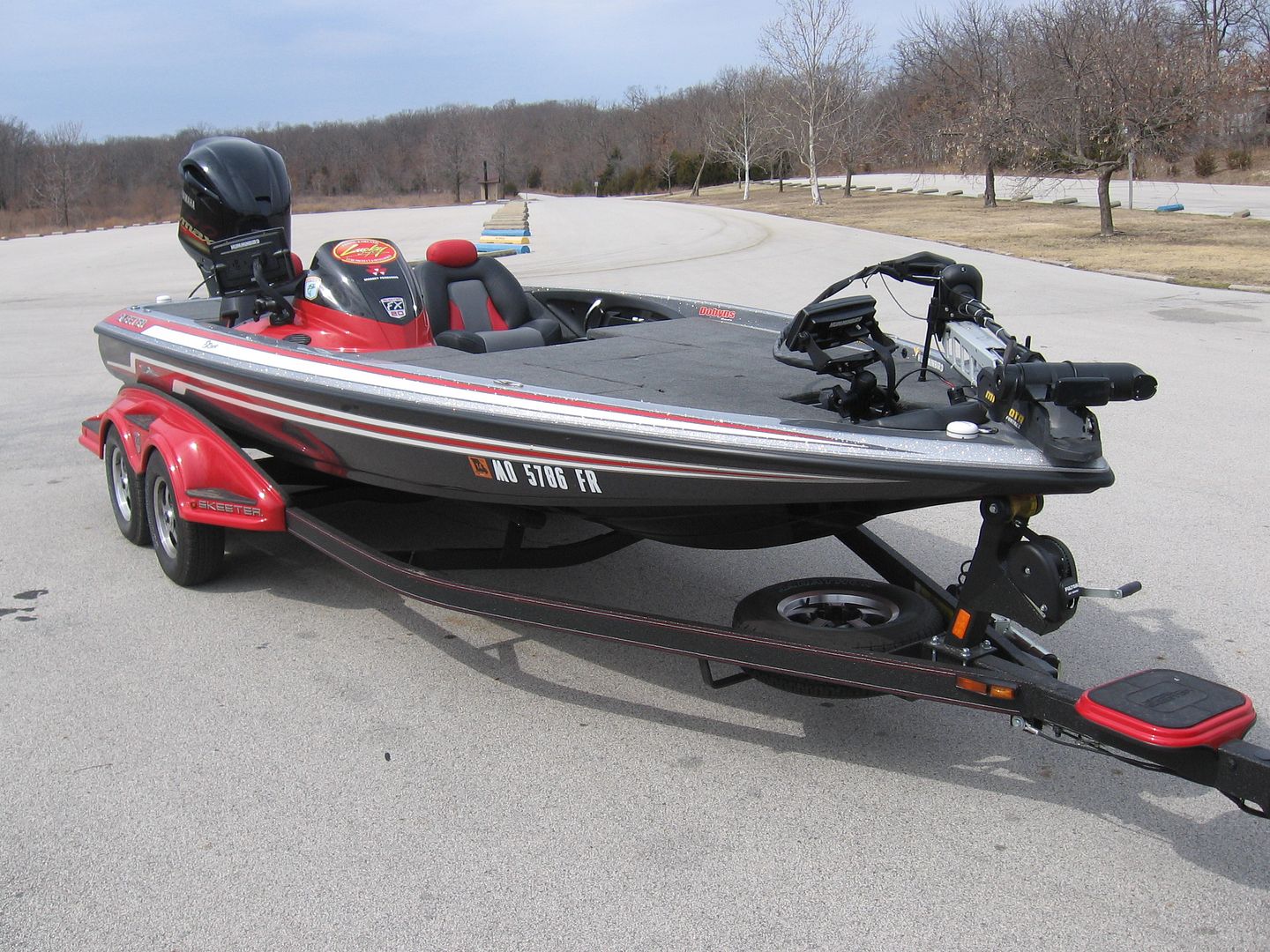

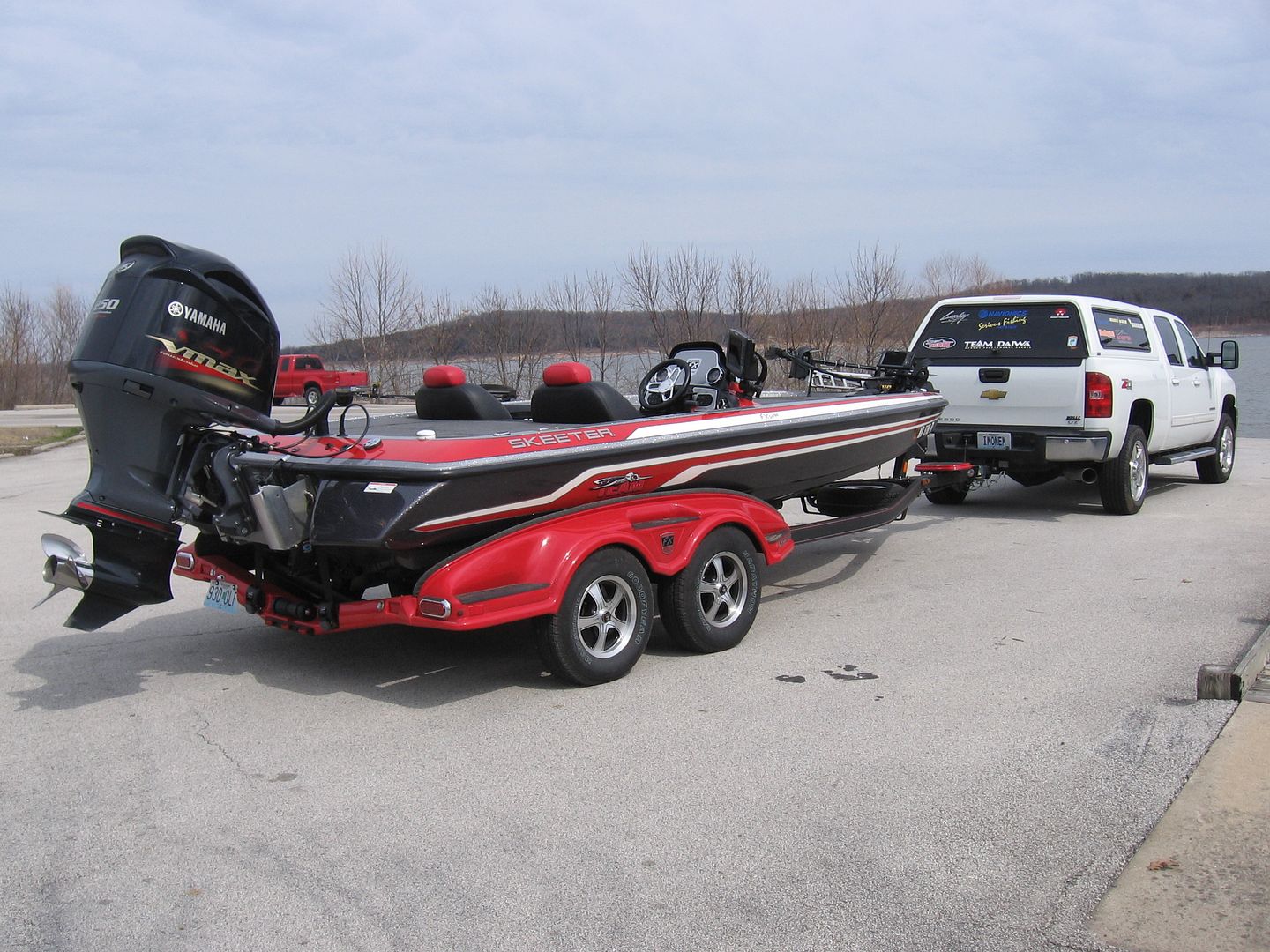

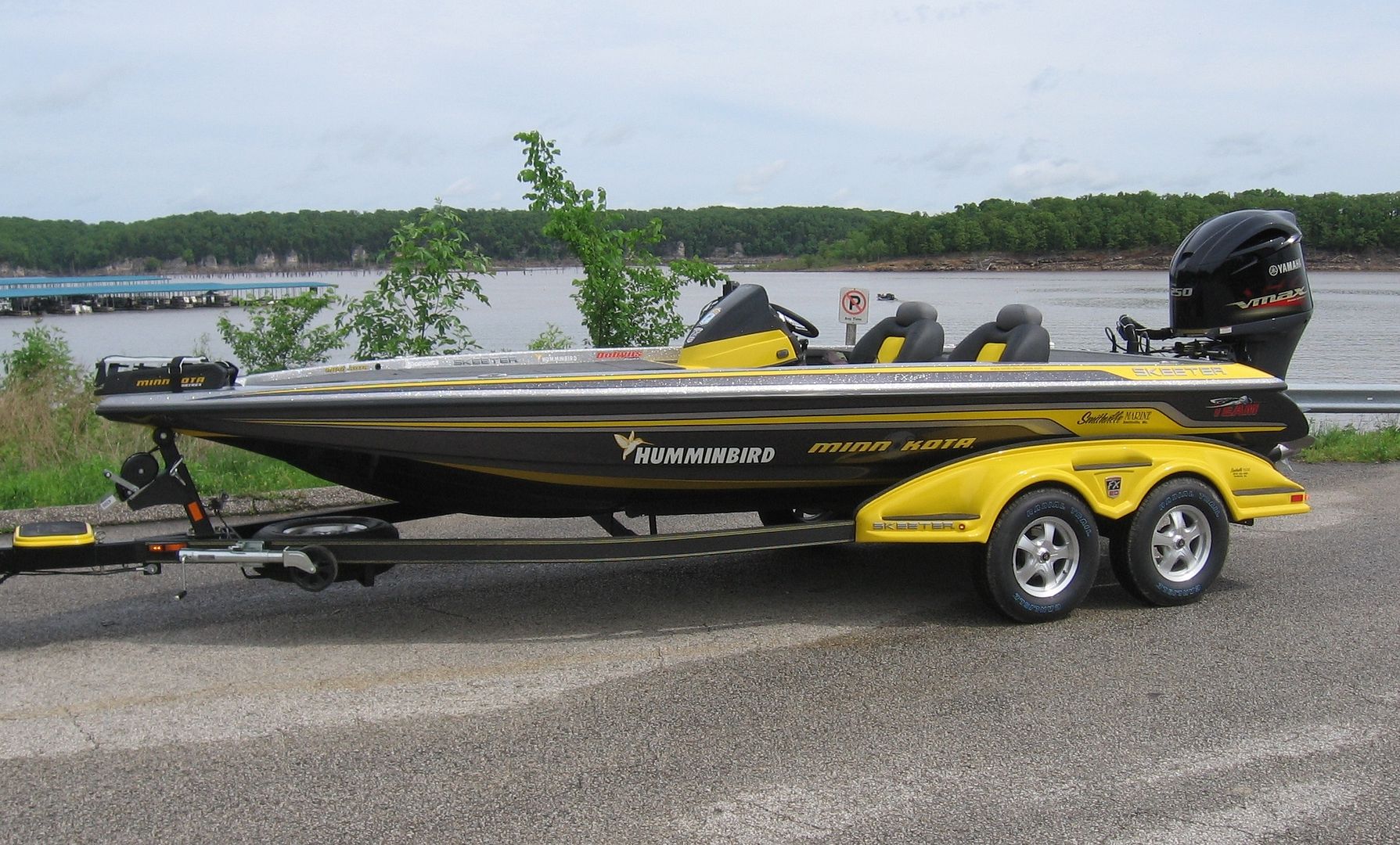

2010 Skeeter FX20 - Humminbird 1197c and 898c:











And the decals!!!

[Doug Vahrenberg]

Here's mounting my 1197 on my zx200.





Member: TNsuperpro - http://www.bbcboards.net/zerou...=9027

[Doug Vahrenberg]

here's mine I just wrapped up















Member: TNT - http://www.bbcboards.net/zerou...=1633

[Doug Vahrenberg]

2011 Skeeter FX20 Installation:

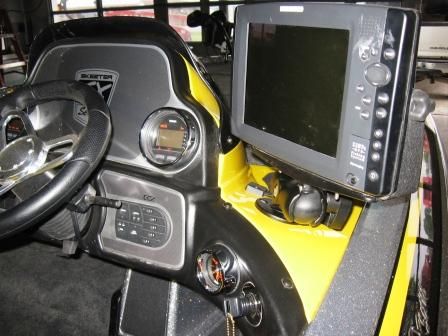

1198c @ Console



Used the RAM Adapter Base from http://www.transducershieldandsaver.com

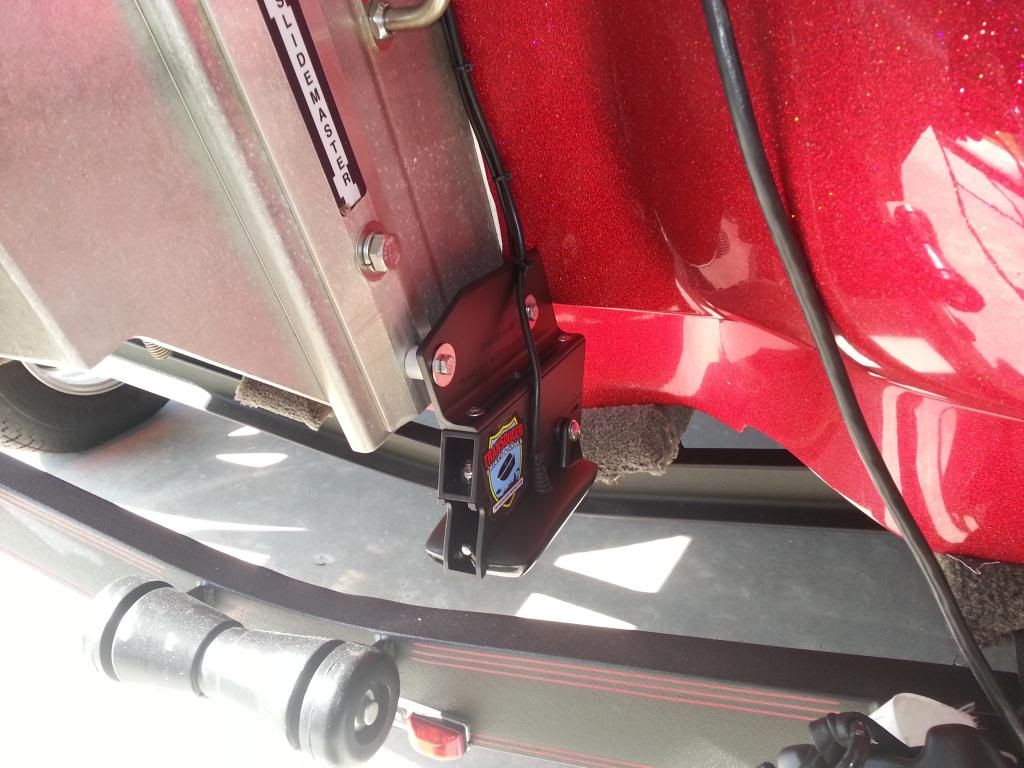

Transducer installed with http://www.transducershieldandsaver.com
L BRacket: LB-AT-HP
Spacer:
Bracket: TM-HDsi



GPS Receiver for 1198c mounted near the transducer



998c on Trolling Motor

[Gallawho]

2003 Skeeter SX 170
No jack plate so Transducer above step on transom.



Siliconed down the GPS puck to avoid more screw holes.



Large RAM mount with the RAM mount base disc from transducer shield and saver.



Console view of 1198.

[Doug Vahrenberg]

As was requested in the starting thread:

Please Post Installation Images Only. If you wish to discuss please start a new thread referencing or pasting image in new thread.

We are trying to keep the Stickies with Reference Information Only for example the Boat Installation Pages Post Pictures and Installation Information Only. If you want to discuss please start a new thread and link to the images you want to discuss you will probably get more help getting your questions answered and will help us keep these threads on track.

Thanks for understanding.

[Bone234]

Skeeter 2012 ZX20 - (revised)

[sjbelaire]

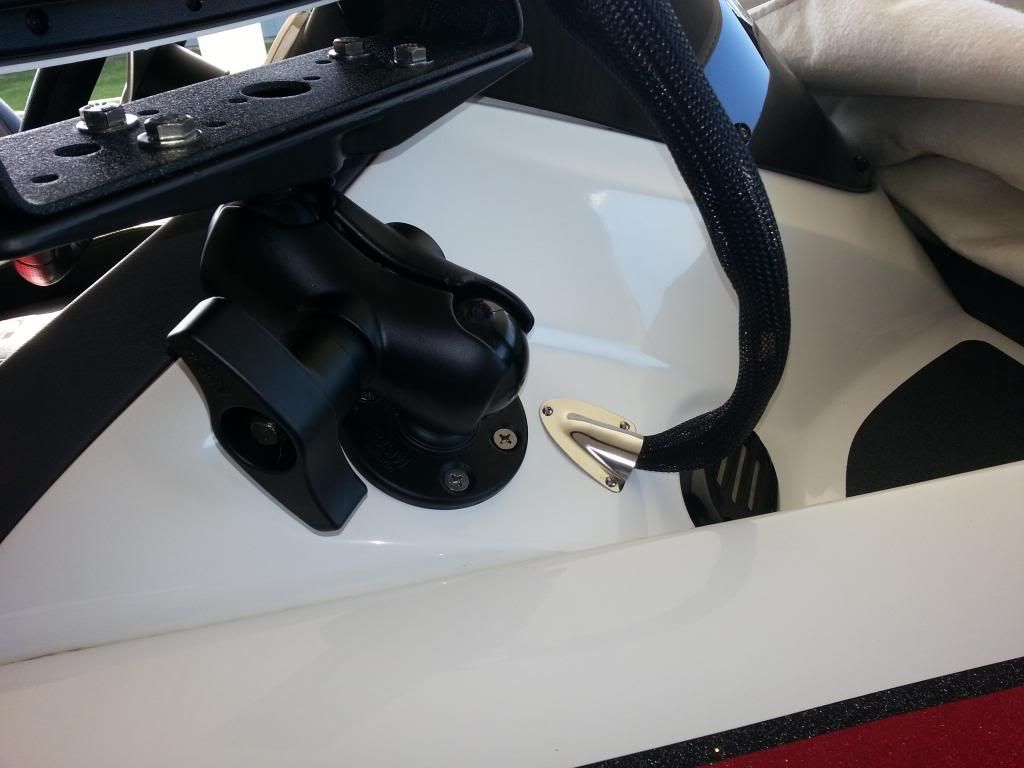

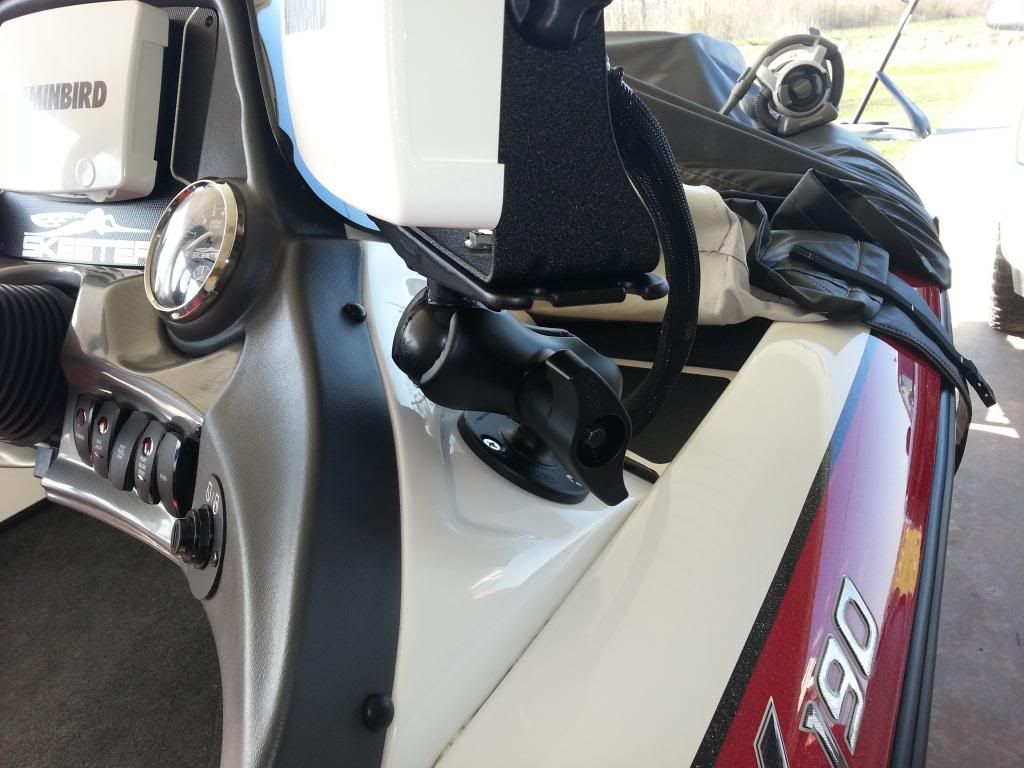

Console Installation Of new 998c si install on my Skeeter ZX190


Just could not drill in the top cap yet...maybe later!

[usafuser]

Great thread...I have a Skeeter SL 190 like the one pictured here. I just bought a Humminbird 698CI Kevin Van Dam model and used a RAM mount in the same location. Is the transducer in a good spot that close to the motor? I mounted mine to a 2' piece of pressure treated 2X4 and clamped it to the back of the boat in a similar location for sea trials prior to installation. It worked ok at slow speeds but definitely lost signal at higher speeds. Was wondering whether this was a better location for all speeds?

[Wayne P.]

You should use a shoot-thru XP 9 20 2D transducer with your boat and the SI transducer can be above the hull bottom for idle speed scanning.

Use the AS SIDB Y cable to connect the two transducers to the display.

None of the pictured transom SI transducers are at the bottom of the hull so it can give depth readings when on plane.

[usafuser]

Thanks, Wayne. Good advice.

Rick

[skeeter03tzx190]

998 on the bow and a 999 at the wheel. 999 duesers are through the hull and side image is on the jack plate.2.jpgDSC000872.jpgDSC000832.jpgDSC000862.jpgDSC000922.jpg

[gmintimidator]

2009 SX170
Removed old dash and multifunction gauges.

New custom dash, gauges to accommodate new dash mounted 898.

Custom bracket at motor mount for SI. High speed thru hull transducer used in conjunction with Y cable.

Temporary mount for 1198 up front to test before constructing more complex part. Tranducer Shield and saver mount for SI on the trolling motor and custom aluminum extension to clear shorter Edge trolling motors.

Big thanks out to the board members who helped out with this project and a thankyou to Doug for posting all the information on connections and how-to.

[inlovewithfishin]

2006 Skeeter ZX190... HB 958c DI up front and HB 997c SI at the console. havent mounted GPS puck permanently at the console yet. cant decide if i want it at the console or at the back of the boat?

[frogfish202]

2014 TZX195
