How many brass spacers on a 2023 SHO 250 prop shaft before the T2 prop?

[Twray]

I have a 2023 Skeeter ZXR20/250 SHO that I bought new. When taking the factory installed Vmax 25 pitch T2 off there is one brass spacers that slides down the shaft engaging the bevel on the shaft before the prop is put on.
When looking on the 2023 SHO 250 parts diagram for the lower unit it shows there is 2 brass spacers in front of the T2 prop one fits the bevel and the other is cup shaped to fit over the first spacer.
My question is whether the one spacer that came with the boat correct or should there be 2 like shown in the parts diagram?
Thanks in advance…

[yam911]

There are two spacers.

At times the two spacers might be joined together and appear as one.

[bgibson]

There are two spacers.

At times the two spacers might be joined together and appear as one.

More often than not!

[kef]

Going through this currently as I slung a blade on my T2.

There are 2 thrust washers, the one that fits closest to the LU, which you are aware of. The other thrust washer usually gets stuck in the back of the prop.

I was wondering the exact same thing, and found that 2nd washer pushed into the prop (it was a pain in the a** to get out).

I'm going to try a few PowerTech! props (local dealer I like) before I throw a T2 back on there. The T2 performance is top notch, but slinging blades is no fun. I've been through thrust washer 101 as I've been converting to a flo torque hub kit for the new props, which eliminates the two washer setup and replace with a single thrust washer. I'm expecting a bit of a performance drop, so I may end up back on the T2.

[yam911]

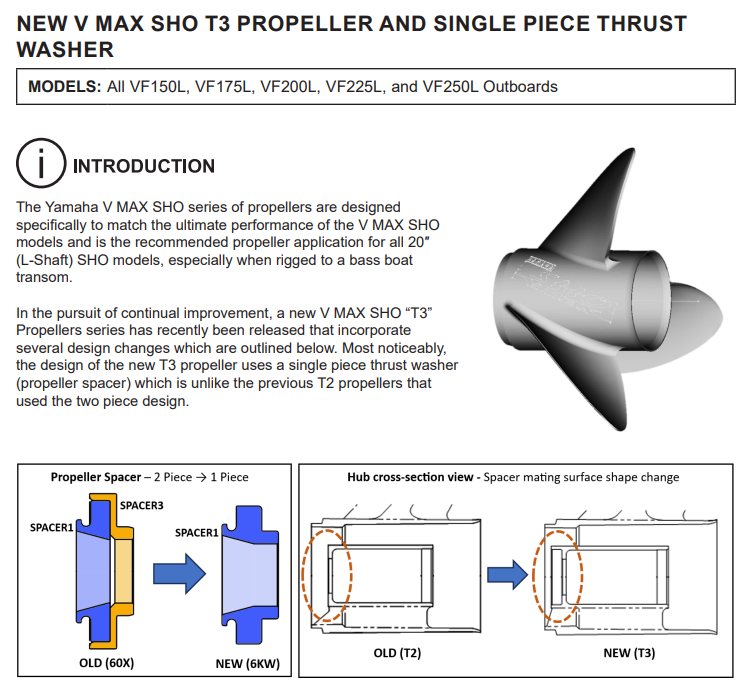

For what it is worth -
