2002 225 3.1

[RBelott]

I am new to Yamaha's, I have read alot about 3 fuel filters and the o2 sensor does anybody have any pictures or any good links with pictures so I can find all 3 of these fuel filters and the o2 sensor so I can change the fuel filters and clean the o2 sensor.


Modified by RBelott at 9:29 AM 4/19/2009

[JUST-IN-TIME]

225 what?
2 or 4
efi or HPDI

look here for parts blow ups

http://www.yamaha-motor.com/ou....aspx

[RBelott]

I am sorry it is a yamaha V-max 225 3.1 ox66 2-stroke efi.

[JUST-IN-TIME]

here are pics

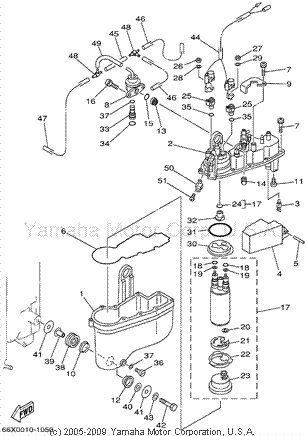

VST tank, port side of motor
you need to drain VST, if you see crud, you need #6 and #23

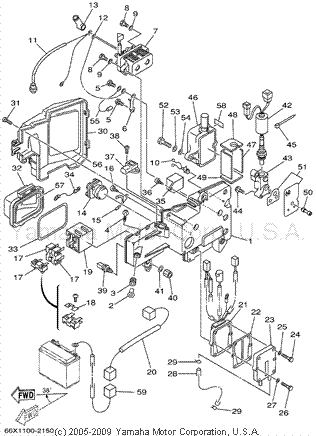

next is the o2 sensor
#42, you need to clean #50 and replace gasket #51

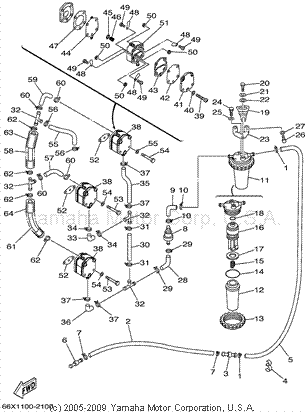

next is the fuel pumps
you need 3 of #52 gaskets
change #16 and #14 yearly also

[RBelott]

Thanks for all the info (Just in time)

[JUST-IN-TIME]

u bet!
