Hi guys. Hope you can help me out! I have a 2001 TR-21 and my livewell fill and recirculate pumps are not getting power. The pump out and bilge work fine. I know that the pumps are good because I replaced them last year. I also checked the circuit breaker by the hot foot. Therefore, I am assuming it is another relay somewhere. I doubt 2 switches would break simultaneously. Any help would be very appreciated!!
you need new switches i just did mine on my 03 tr21 only half the pannel would work i had no fill and no recirk on my port side they have new updated switches but they ant cheap two hundred and change but if you have a multimeter check and see if you have power out of the switch fist if not you need the panel

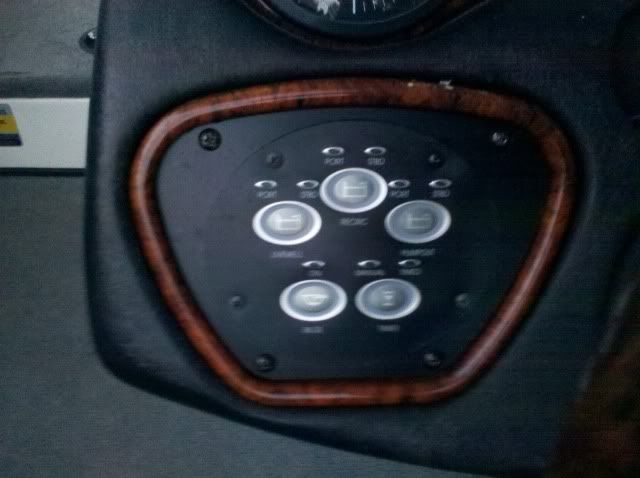

old style

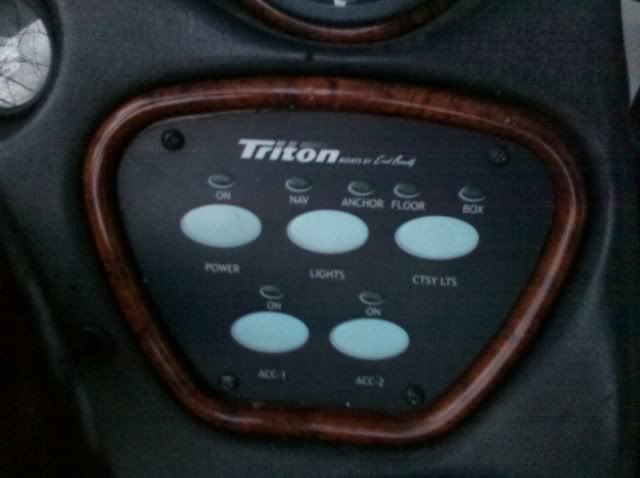

new style
One thing that will happen is the connectors on the circuit breakers will carrode and cause you to loose voltage. If you check the voltage with a multi meter make sure it is under load, it will measure 12V until you add the load.
Dan Burnette - Marietta, GA
Triton 18TRX - 200 HO G2
Thank you for your replys! Although, I have figured out the problem. Behind the switch panel, right of the steering wheel, is a relay switch. The hot wire from the on/off switch runs to the relay. The relay then provides electricity to the livewell fill and recirculate switches. The pumpout and bilge switches are seperate circuits and do not involve this relay. That is why those pumps continued to work for me. All this to say, once I replace this relay, my problem should be fixed. Here is the part number for anyone who needs it: Hella 4rd93168001. Although, Your new switches look awesome. I may have to look into replacing mine soon!
Just finished replacing the relay (picked a new one up from O'Reilly Auto Parts). Happy to say it fixed the issue.
