z9 courtesy light

[DCFOUNTAIN]

I just bought a new 2010 z-9 cdc and I just can't find where the courtesy light is and if there is one is there a fuse box for it?

[BMCD]

Its in the rear battery compartment.

[transamz9]

Here's the courtesy lighting that I installed on my Z9

[DCFOUNTAIN]

Thanks guys and Bryan I sure don't see it I guess I will take it to my local dealer Friday and see what they can do.

[DCFOUNTAIN]

That is a sweet courtesy light set up

[transamz9]

The light Bryan is talking about is on the starboard side of you rigging compartment. When you raise your lid , take your trays out and look to the starboard side under the deck. The light has a switch built into it also that may be off. Push on the lens of the light and it will come on when your courtesy button is pushed.

[DCFOUNTAIN]

Thanks but the only light I see is the wiring and frame for the anchor light.

[BMCD]

I assume the cdc would be the same.

[transamz9]

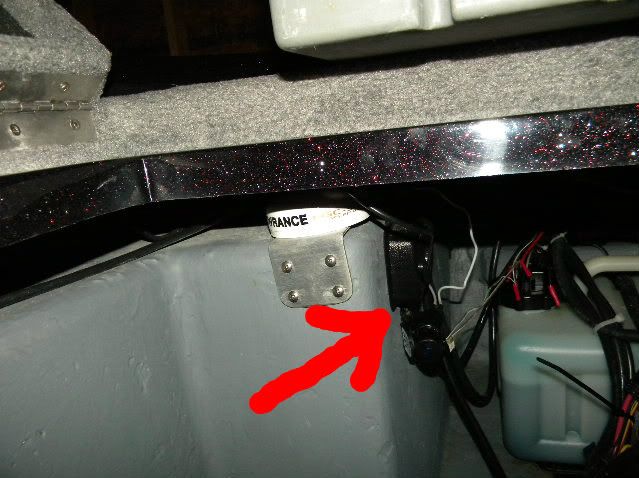

Here's a picture of my factory light with the arrow pointing to it.........

[smiley2uall]

Hey transamz9 does that gps puck pick up good located there. I noticed it in your pic. I've been looking for a good place to put mine and didn't know if it would work not being in the open.

[transamz9]

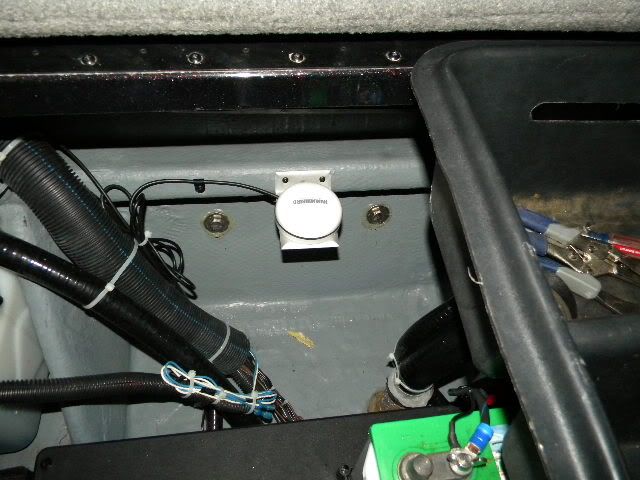

Yes it works just fine. Here is a pic of the other one in the rear. To be truthfull about it, the only one that I have ever had trouble with locking on it the one on the bow that sits out in the wide open. Go figure

[DCFOUNTAIN]

Thanks I will certainly look into mine and see if it is there.

[DCFOUNTAIN]

Well my dealer contacted the factory and said my boat only came equipped with the 2 rope lights and 3 storage compartment lights so go figure . But If I would buy the light they will supply the labor so oh well only 20 bucks or so.

[mpdigger]

On my 2010 itwas located in the service box up high and yes it was tuned off, even BPS could not locate it so they added one to the console. Then I did locate so now have 2.

[DCFOUNTAIN]

This may sound stupid but when you say service box do you mean in the rigging compartment like the one transam was kind of enough to show?

[mpdigger]

Yes that would be it...... battery compartment..........
