    Z7 HDS-7 Structure scan set up?

    I will be installing an HDS 7 gen2 at the console, with structure scan trans mounted at the transom here soon. That is when I get my boat back from factory work being done.

    Anyone have this set-up? Looking for where the LSS-1 was mounted in the boat and how the structure scan transducer was mounted. Pictures would be great

    Thanks for any help
    Hire Lures BuzzWalker quick-clip on topwater blades
    2019 Nitro Z19 200 Pro XS 4S V-T2 Live well vents

  2. Member
    Join Date
    Apr 2009
    Location
    Sunrise Beach, MO
    Posts
    1,040
    #2

    Re: Z7 HDS-7 Structure scan set up? (SWL_Justin)

    My HDS-8 is in the dash, the LSS-1 box is on the back wall of the drivers side rod locker. I did have to move the fire extinguisher a little bit to get it to go there, but that's where it fit the best. I mounted it up off the bottom in case any water gets in the compartment. Do you have a jackplate? My LSS transducer is mounted with a Transducer Shield and Saver bracket from Scap. Its mounted to the side of my 6" Bobs Jackplate. You will also need a wedge to get it to sit level. Works great, no interference at all. It wouldn't fit on the bottom of my 6" jackplate, but if I had a plate big enough for it I would have just mounted it to the bottom of the plate.

    If you don't have a jackplate I would mount it so it sits in about the same position.

    Mercury 200hp V6 DTS #2B590854

  3. Nitro Boats Moderator BMCD's Avatar
    Join Date
    Jun 2004
    Location
    Brookeland, Texas
    Posts
    18,795
    #3

    Re: Z7 HDS-7 Structure scan set up? (Baja 252)

    Bill, r you getting a good clear image with that setup?
    Bryan McDonough
    2023 Nitro Z21 XL
    Nitro Team

  4. Member
    Join Date
    Apr 2009
    Location
    Sunrise Beach, MO
    Posts
    1,040
    #4

    Re: Z7 HDS-7 Structure scan set up? (BMCD)

    <table width="90%" cellspacing=0 cellpadding=0 align=center><tr><td>Quote, originally posted by BMCD &raquo;</td></tr><tr><td class="quote">Bill, r you getting a good clear image with that setup?</td></tr></table>

    I think their clear, but I don't profess to be an expert. Here are a couple of screen shots from day one, before I even adjusted anything.

    Ball of bait fish with predator fish on both sides just off the bottom.



    Predator fish move in from the bottom of the bait ball. Half of the bait fish explode upwards and the other half make a run for it to the sides.



    Random screenshot showing some trees and fish.



    The photos of my transducer may a little deceptive on its location. The blue tape represents the surface across the bottom of both sponsons.



    The bottom of the jackplate is 1/4" above that line (without holeshot plate). With the bracket and wedge in place it puts the transducer below the line of the sponsons, something that I was told is important if you are going to get a clear image out to the sides. The setup also puts the transducer out of the way with the engine trimmed all the way down or turned towards the transducer. No matter where the engine is I never get any interference. Another thing I have read is that if you have a jackplate, you most likely will have to have a holeshot plate or you will get interference.

    Another shot of transducer and bracket.




    It will even pick up a line of buoys, off to the side of the boat.





    Probably more info than anyone wanted. Do these screen shots compare to what everyone else is getting with their setups?

    Mercury 200hp V6 DTS #2B590854

  5. Member
    Join Date
    Jan 2008
    Location
    White House TN
    Posts
    6,462
    #5

    Re: Z7 HDS-7 Structure scan set up? (Baja 252)

    From my past Z7...



    Basscat!

  6. Member SWL_Justin's Avatar
    Join Date
    Dec 2006
    Location
    Lexington, KY
    Posts
    566
    #6

    Re: Z7 HDS-7 Structure scan set up? (GRR884)

    To answer a question: I have a 6" Rite Hite jackplate.

    GRR884: Having trouble telling how you mounted the transducer. Did you use the bracket it came with? It looks to be mounted under the step next to the V cut? Thanks for the picture of the box mounted in the rod box
    Hire Lures BuzzWalker quick-clip on topwater blades
    2019 Nitro Z19 200 Pro XS 4S V-T2 Live well vents

  7. Member
    Join Date
    Jan 2008
    Location
    White House TN
    Posts
    6,462
    #7

    Re: Z7 HDS-7 Structure scan set up? (SWL_Justin)

    <table width="90%" cellspacing=0 cellpadding=0 align=center><tr><td>Quote, originally posted by SWL_Justin &raquo;</td></tr><tr><td class="quote">To answer a question: I have a 6" Rite Hite jackplate.

    GRR884: Having trouble telling how you mounted the transducer. Did you use the bracket it came with? It looks to be mounted under the step next to the V cut? Thanks for the picture of the box mounted in the rod box </td></tr></table>

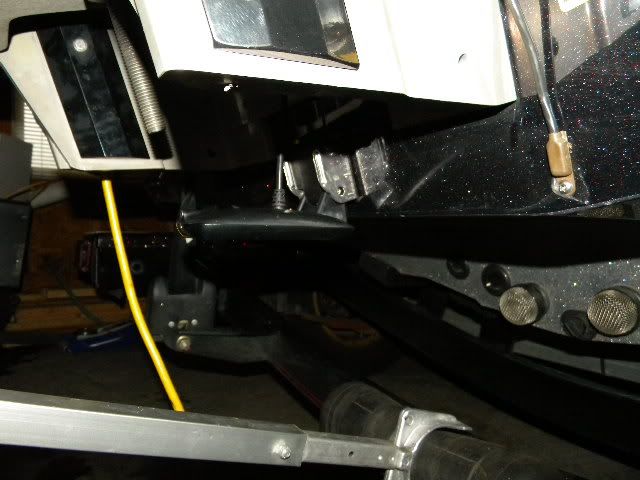

    Yes, no bracket used. Mounted directly under that part of the hull that sticks out.
    Basscat!

  8. Nitro Boats Moderator BMCD's Avatar
    Join Date
    Jun 2004
    Location
    Brookeland, Texas
    Posts
    18,795
    #8

    Re: Z7 HDS-7 Structure scan set up? (Baja 252)

    Guess I am going to go that route with the transducer shield saver.
    Bryan McDonough
    2023 Nitro Z21 XL
    Nitro Team

  9. Moderator TMG's Avatar
    Join Date
    Apr 2006
    Location
    New Hampshire
    Posts
    32,777
    #9

    Re: Z7 HDS-7 Structure scan set up? (GRR884)

    <table width="90%" cellspacing=0 cellpadding=0 align=center><tr><td>Quote, originally posted by GRR884 &raquo;</td></tr><tr><td class="quote">

    Yes, no bracket used. Mounted directly under that part of the hull that sticks out.</td></tr></table>

    Thats how I mounted it on my 482. Works great but I loose it as soon as Im on plane. I just switch to sonar.
    " Talking to you is like clapping with one hand "
    Anthrax

  10. Member Fish_4_Five's Avatar
    Join Date
    Apr 2005
    Location
    Springfield , IL
    Posts
    3,448
    #10

    Re: Z7 HDS-7 Structure scan set up? (TMG)

    Thoswe shots are sweet. I have a question on the last pictire though. What is that taking a picture of? According to the graph, what I assume is the wire and bouys, say they are 20 ft under the water. Am I reading that incorrectly?
    2004 Triton TR21, 225 proxs

  11. Member
    Join Date
    Apr 2009
    Location
    Sunrise Beach, MO
    Posts
    1,040
    #11

    Re: Z7 HDS-7 Structure scan set up? (Fish_4_Five)

    <table width="90%" cellspacing=0 cellpadding=0 align=center><tr><td>Quote, originally posted by Fish_4_Five &raquo;</td></tr><tr><td class="quote">Those shots are sweet. I have a question on the last picture though. What is that taking a picture of? According to the graph, what I assume is the wire and buoys, say they are 20 ft under the water. Am I reading that incorrectly?</td></tr></table>

    I knew when I posted those two photos some one would ask that question. A couple of years ago when I took those screenshots, I didn't understand them either. Not just the depth, but why does the line of buoys show up on the left and right side of the HDS when they were only on the right side of the boat. I emailed the photos to a couple of very experienced HDS guys in the Lowrance forum and I got a very complicated technical explanation. I didn't understand it then, let alone two years later, sorry.
    Mercury 200hp V6 DTS #2B590854

  12. Member SWL_Justin's Avatar
    Join Date
    Dec 2006
    Location
    Lexington, KY
    Posts
    566
    #12

    Re: Z7 HDS-7 Structure scan set up? (GRR884)

    Thanks! That is the way I'll mount it. Thanks again for the help
    Hire Lures BuzzWalker quick-clip on topwater blades
    2019 Nitro Z19 200 Pro XS 4S V-T2 Live well vents

  13. Member
    Join Date
    Jan 2008
    Location
    White House TN
    Posts
    6,462
    #13

    Re: Z7 HDS-7 Structure scan set up? (TMG)

    <table width="90%" cellspacing=0 cellpadding=0 align=center><tr><td>Quote, originally posted by TMG &raquo;</td></tr><tr><td class="quote">

    Thats how I mounted it on my 482. Works great but I loose it as soon as Im on plane. I just switch to sonar.</td></tr></table>

    It's not going to work anywhere if you're on plane.

    Structurescan only works at speeds less than 5MPH
    Basscat!

  14. Nitro Boats Moderator BMCD's Avatar
    Join Date
    Jun 2004
    Location
    Brookeland, Texas
    Posts
    18,795
    #14

    Re: Z7 HDS-7 Structure scan set up? (SWL_Justin)

    So is there anyone with a Z8/Z9 that is getting a good picture? Looking to see how its setup.
    Bryan McDonough
    2023 Nitro Z21 XL
    Nitro Team

  15. Member
    Join Date
    Sep 2009
    Location
    Lawrenceburg, Ky
    Posts
    1,774
    #15

    Re: Z7 HDS-7 Structure scan set up? (BMCD)

    Bryan, My pix are great but mine is mounted to the hull where yours has the rapid plane cut-out.




  16. Moderator
    Join Date
    Nov 2006
    Location
    Acworth, GA
    Posts
    3,347
    #16

    Re: Z7 HDS-7 Structure scan set up? (transamz9)

    <table width="90%" cellspacing=0 cellpadding=0 align=center><tr><td>Quote, originally posted by transamz9 &raquo;</td></tr><tr><td class="quote">Bryan, My pix are great but mine is mounted to the hull where yours has the rapid plane cut-out.

    </td></tr></table>

    I like the looks of that ducer!!


    Atlanta, GA Bass Fishing Guide/Swimbait Mfg
    http://www.BullShad.com

  17. Moderator TMG's Avatar
    Join Date
    Apr 2006
    Location
    New Hampshire
    Posts
    32,777
    #17

    Re: Z7 HDS-7 Structure scan set up? (GRR884)

    <table width="90%" cellspacing=0 cellpadding=0 align=center><tr><td>Quote, originally posted by GRR884 &raquo;</td></tr><tr><td class="quote">

    It's not going to work anywhere if you're on plane.

    Structurescan only works at speeds less than 5MPH </td></tr></table>

    There web site says

    Sidescan Specifications:
    Max Range: 455kHz (500ft — 250 per side) 800kHz (300ft —150 per side)
    Max Speed: 35 mph (56 kmh)
    Mark objects: 15 mph (24 kmh)
    Optimum speed: 10 mph (16 kmh) or less



    Downscan Specifications:
    Max Depth: 100 ft (800kHz); 300 ft (455kHz)
    Max Speed: 55 mph (88 kmh)
    Mark objects: 35 mph (56 kmh)
    Optimum speed: 10 mph (16 kmh) or less

    I know I go faster than 5 and still get good pics.
    " Talking to you is like clapping with one hand "
    Anthrax

  18. Member
    Join Date
    Sep 2009
    Location
    Lawrenceburg, Ky
    Posts
    1,774
    #18

    Re: Z7 HDS-7 Structure scan set up? (TMG)

    I have been to 8 and still have a good picture but I'm throwing some major barge wakes at that speed, so I will idle to scan and watch my X27 for on plane running.



  19. Member
    Join Date
    Jan 2008
    Location
    White House TN
    Posts
    6,462
    #19

    Re: Z7 HDS-7 Structure scan set up? (transamz9)

    <table width="90%" cellspacing=0 cellpadding=0 align=center><tr><td>Quote, originally posted by transamz9 &raquo;</td></tr><tr><td class="quote">I have been to 8 and still have a good picture </td></tr></table> Where is your LSS-1 ducer mounted?
    Basscat!

  20. Member
    Join Date
    Sep 2009
    Location
    Lawrenceburg, Ky
    Posts
    1,774
    #20

    Re: Z7 HDS-7 Structure scan set up? (GRR884)

    Chit guys I'm sorry...I just now read the title of the thread. I don't have the LSS-1 ducer. My bad.
