You see anything wrong here?

I 100% despise electrical work, but when mamaw asks for help, I do what I can.

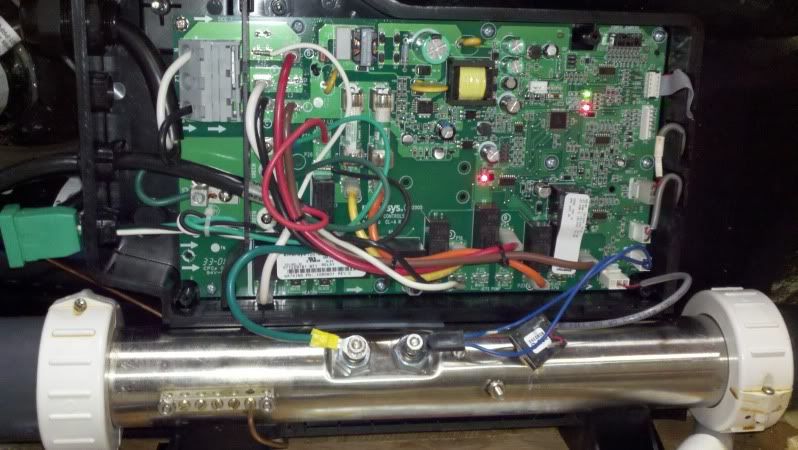

This is the control panel and the 2 bolts coming out of the pipe is attached to the heating coil/element (whatever it's called) inside....she said it had gone out (actually when she turned it on after about 15 mins it would throw the breaker), so I came over, took the coil/element out, she went and got a new one, then I came back over and put it in and hooked everything back the way I "Thought" it was supposed to go. (which could be completely wrong! ) Still no heated water.

[timmaahh12]

One thing I don't get is why the hell would those 2 blue wires have plastic end thing on it? Correct me if I'm wrong, but plastic won't conduct electricity, right?

[cmclairday2]

Is the plastic under the terminal? If so, I know where I'd start...
Other than that, everything looks ok. I'd have to be able to take a meter and just start checking things out.

[cmclairday2]

Did you check the fuses, located there on the center of the circuit board?

[Dando]

Is that a garbage disposal?

[timmaahh12]

That whole black piece that is tightened down on the terminal is plastic....that's why I said I don't know what good that will do!

Seems to me that if there are 2 things coming off of the coil, then you would need a + and a - of some sort coming to it for it to be able to heat, right? Instead, it has the green wire, and the blue wire(which has a plastic doo-dad on it)....seems to me like that wouldn't do chit.

Fuses are good.

[timmaahh12]

<table width="90%" cellspacing=0 cellpadding=0 align=center><tr><td>Quote, originally posted by SkeeterDD22 &raquo;</td></tr><tr><td class="quote">Is that a garbage disposal?</td></tr></table>

No, but the way things are going, it will soon be disposed as garbage.

[cmclairday2]

It would've been much more helpful if you had taken a picture before you butchered the wiring..
See if it has a schematic around, or get me model and serial number and I'll find one online.

[Razorbass P3]

WTH is that thing? Battery operated shake weight?
