    need to fix this area

    I have this rear area that needs repair. I've posted on here before about it and now I'm ready to do it.

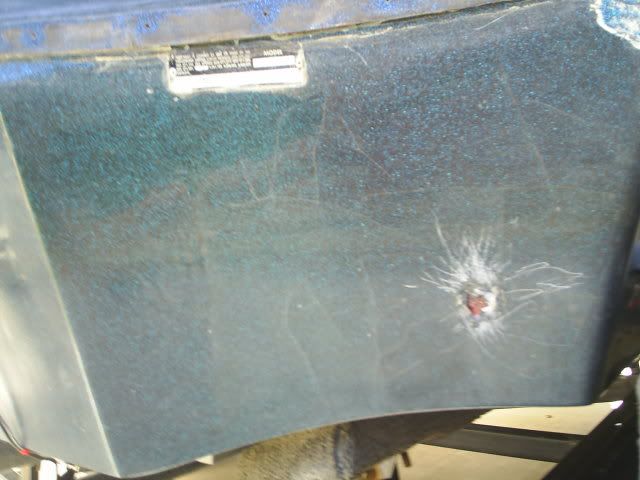

    In the picture the hole is from where I chipped at the cracks to see what it looked like underneath.
    What do you suggest I do? Can I chip away at all the cracks then disc the area down. But how much do I take off?
    I don't care what the finished area looks like as long as I get the cracks out and make sure no water gets in......

  2. Member
    Join Date
    May 2007
    Location
    Colonial Heights Virginia
    Posts
    5,214
    #2

    Re: need to fix this area (G P)

    I'm not sure but if the cracks are merely clear coat cracking...... Now that you have a hole in the rear your choices are to repair that area or alot of work and grind down into the fiberglass on the whole portion. What year is your Ranger? All Rangers prior to 87 model year had wood in the transom.

  3. Member G P's Avatar
    Join Date
    Apr 2005
    Location
    Tomball TX
    Posts
    273
    #3

    Re: need to fix this area (javelin90)

    It's an 87 it has wood. I chipped off the area where it was cracked and it went to this red color area. I'm sure thats still gel coat right? So I can grind down to where the cracks are removed then what do I use on the repair? Marine tex?

  4. Member BASSCAT7's Avatar
    Join Date
    Jun 2004
    Location
    Philadelphia
    Posts
    3,002
    #4

    Re: need to fix this area (G P)

    I doubt the red you see is gelcoat. Gelcoat is only the top layer , 1/16 " to 1/8 " at most.
    Might be the resin/mat layer backing the wood.

    You can grind down the cracks, sand the area smooth and if you don't care about cosmetics You can use the white Marine - Tex and tint it close to your boat color using Evercoat tints.
    Marine - Tex will be a permanent , waterproof fix.

    If you can find the matching gelcoat color, you can Marine tex then apply a skin coat of gelcoat to match your boat.

  5. Member
    Join Date
    Nov 2008
    Location
    Raleigh NC / Falls Lake
    Posts
    11,251
    #5

    Re: need to fix this area (BASSCAT7)

    looks like it down to resin epoxy and then plywood , have may carpet up and thats what my floor looks like ? It, s probally where they used a chop gun and sprayed the glass & expoy to the ply wood ?


    Modified by rchavis at 9:32 PM 6/16/2010
