javelin renegade 19 Livewell/Aereator

[Afrank1982]

Does anybody have a good run down on a 2001 javelin renegade 19 livewell. My switch on the dash lights up but the fill switch will not do anything in manual or auto. I have looked all in the back of this boat and can not find the pump. Does anyone know where the fill pump is located? The Aereator pump is visible right under and behind the gas tank. Right next to it just under the gas tank is what appears to be just a valve. I cant see under the tank real good with a mirror but i assume there may be a pump on the valve but i cant see it and really not wanting to remove the gas tank to find out nothing is under there. Any help would be greatly appreciated.

[mactlman]

pumps are very low in the very back usually. my stratos (2000) were just inside the hull by the drain. likely have a bad pump. need to check it with a test light or volt meter for 12v and a ground--

jr19 will likely know better https://www.bbcboards.net/member.php?u=4926

[Afrank1982]

I found it and ordered a replacement cartridge. who ever owned it before me had a piece of plywood screwed down above the pump and i could not see it without removing the plywood

[mactlman]

I found it and ordered a replacement cartridge. who ever owned it before me had a piece of plywood screwed down above the pump and i could not see it without removing the plywood

[tdt91]

This is the original look. The Attwood is an add on secondary bilge pump. The Sunami is a replacement aux livewell pump.

[Afrank1982]

Does your have the black trap doors that raise up and cover part of the bilge are?

[JR19]

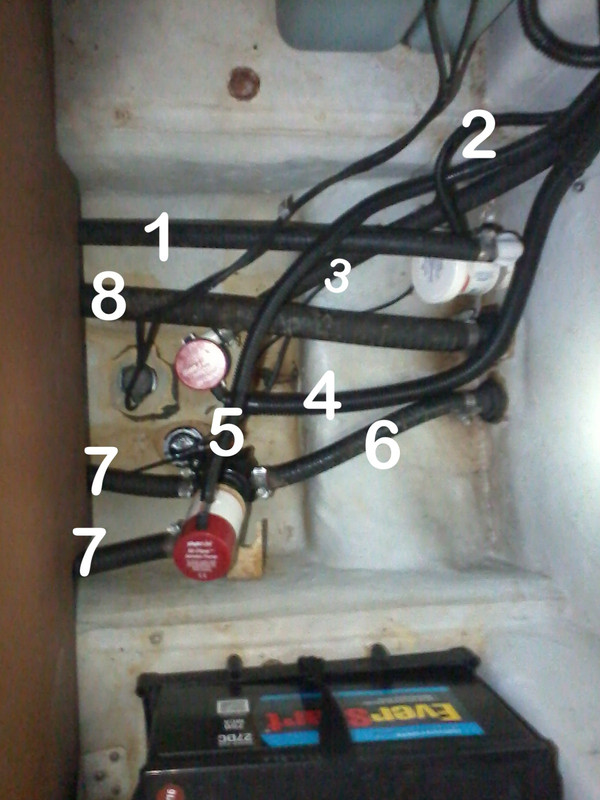

Both comments so far have provided correct information. I'm just giving a third conformation. Here is a picture I took several years ago when a member was wanting to know what the hoses go to, hence why I have them numbered. The hose on #1 goes to your fill pump. This is a the same lay out as tdt91 post but with two minor differences. I only have one bilge pump that has to be manually turn on whereas he has a secondary bilge pump with a float that automatically comes on. The second difference is although the picture looks different its the orientation of the camera angle that makes it look different. Otherwise the layout is the same. As for a cover or anything over the pumps or bilge area there was nothing from the factory covering anything. All pumps, hoses and valve are out in the open and easily accessible. If yours has a lid/cover it was added on buy someone other than the manufacture.

[Ganno595]

My setup Is different than this JR19. Mine is similar to TDT91 and mine has a bifold cover over the pumps. ill take a pic when i get home and post it. I too have a 2001 Renegade 19. Thats not saying it wasnt all changed before i got it tho or maybe there were different option packages. mine has 2 livewell pumps and a float for the bilge pump as well.

[Ganno595]


This is how my 2001 renegade 19 is setup. The auto bilge is just tucked under the tank.

[tdt91]

My setup Is different than this JR19. Mine is similar to TDT91 and mine has a bifold cover over the pumps. ill take a pic when i get home and post it. I too have a 2001 Renegade 19. Thats not saying it wasnt all changed before i got it tho or maybe there were different option packages. mine has 2 livewell pumps and a float for the bilge pump as well.

Mine too came new from the factory with a bi-fold lid that covers the bilge pumps, etc. It's easily raised out of the way to access the bilge. I actually reinforced mine and that's where my 3 bank charger sits now.
