    Evinrude water pump help

    HI - I've read the instructions posted here in changing out the water pump on my 1995 evinrude 150hp intruder at

    http://www.bassboatcentral.com/johnrudetips.htm

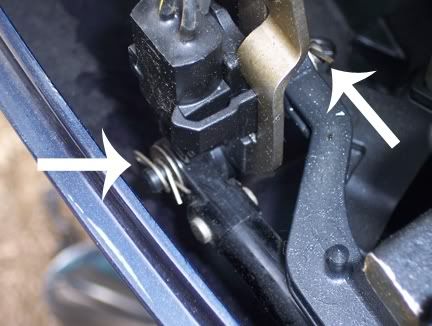

    Any one know which cotter pins I need to disconnect in order to free up the shifter? It was described but there are two pictured here on mine, and also 1 underneath that you can't see. I just want to make sure I do the right thing before I waste a lot of time. thanks guys.

    It's a 1995 Intruder E150 ELEOM




    here is the text that describes the situation::

    remove the cotter pin (small) from the shift
    linkage (plastic arm) and the shift lever. Loosen the bolt on the
    shift rod bracket the shift lever will now be free and you can slide
    it to the left there is a pin that connects the lever to the shift rod.

  2. SC Club Moderator ChampioNman's Avatar
    Join Date
    May 2004
    Location
    Crawfordville, FL/Lake Hartwell, SC
    Posts
    72,220
    #2

    Re: Evinrude water pump help (All Star Steve)

    follow the linkage to the front from the arrow on the right. Disconnect that cotter pin as it holds the shift linkage. Then you pull the hitch pin under the bottom carb to move the shift rod pin.

  3. Member
    Join Date
    Jun 2005
    Location
    Providence
    Posts
    646
    #3

    Re: Evinrude water pump help (ChampioNman)

    got it. thanks.
